D2S-1309FL/1313FL Metal&non-metal laser cutting machine fiber laser+CO2 laser

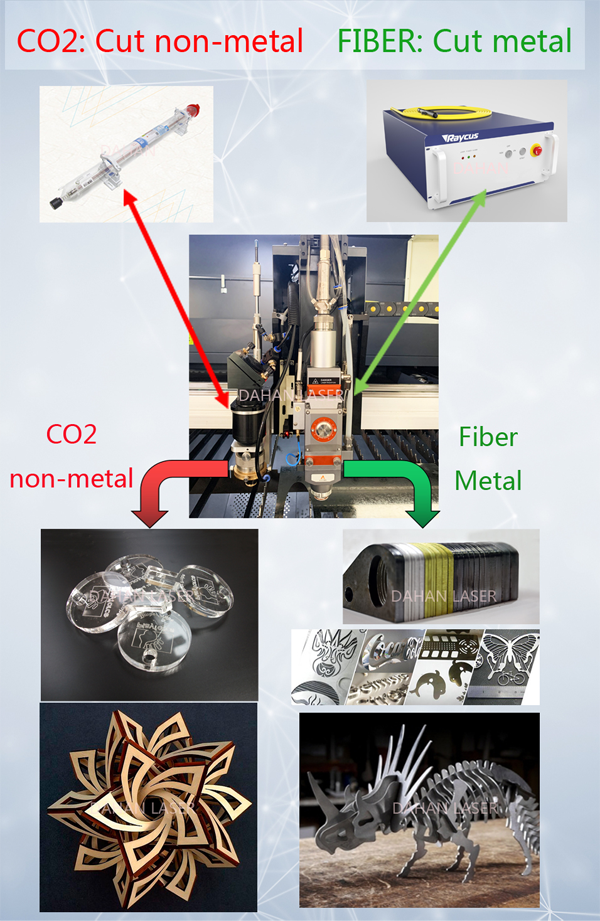

this machine is designed for cutting metal and non-metal. It is combinated by fiber laser and Co2 laser tube. Fiber laser is for cutting stainless steel up to 6mm, carbon steel up to 14mm. CO2 laser is for cutting acrylic up to 40mm, plywood up to 20mm, MDF up to 15mm, etc.DAHAN D2S-1309FL/ D2S-1313FL metal and non-metal laser cutting machine
fiber & CO2 combination laser cutting machine,
mixed laser cutting machine,
1000W fiber laser 150W CO2 laser,
1500W fiber laser 400W CO2 laser.
Widely used in the processing of high precision high polished organic materials/acrylic cutting, display panel, display cabinet,showcase, lighting industry, photo frame woodworking industry, architectural model, handicrafts, decoration industry, sign advertising words making, LED lighting box, aerospace industry, machinery, ship, elevator industry and metal sheet cutting industry, etc.
Suitable for cutting organic materials/acrylic, plywood, MDF, fabric, leather, paper,
Stainless steel, carbon steel, galvanized sheet, etc.
DAHAN D2S-1309FL/ D2S-1313FL metal and non-metal laser cutting machine
fiber & CO2 combination laser cutting machine,
mixed laser cutting machine,
1000W fiber laser 150W CO2 laser,
1500W fiber laser 400W CO2 laser.
machine parameter
Item | D2S-1309FL |
Overall dimension | 2740*2000*2000 mm |
Max working size | 1300*900 mm |
Fiber generator power | 1000W, 1500W, 2000W |
CO2 laser power | Optional Single tube 150W, 200W, folded tube 300W, beam combination tube 400W |
Fiber Laser weave length | 1080 nm ±5 |
Fiber Line width | 0.1MM |
Laser Class | Class 4 laser |
Cutting speed | 15 meter/min |
Position accuracy | ±0.03mm |
Auxiliary gas For cutting metal | AIR, OXYGEN, NITROGEN |
Cool gas for cutting non-metal | Air |
Fiber Aiming location | Red light |
Cooling | Industrial water cooling |
Electricity | 220V/50HZ， ±5% |
Continuous working | 24 hours |
Weight | 700KG |
Packing size | 2850*2150*2200 mm |
