DH-X1 Digitcal cutting system

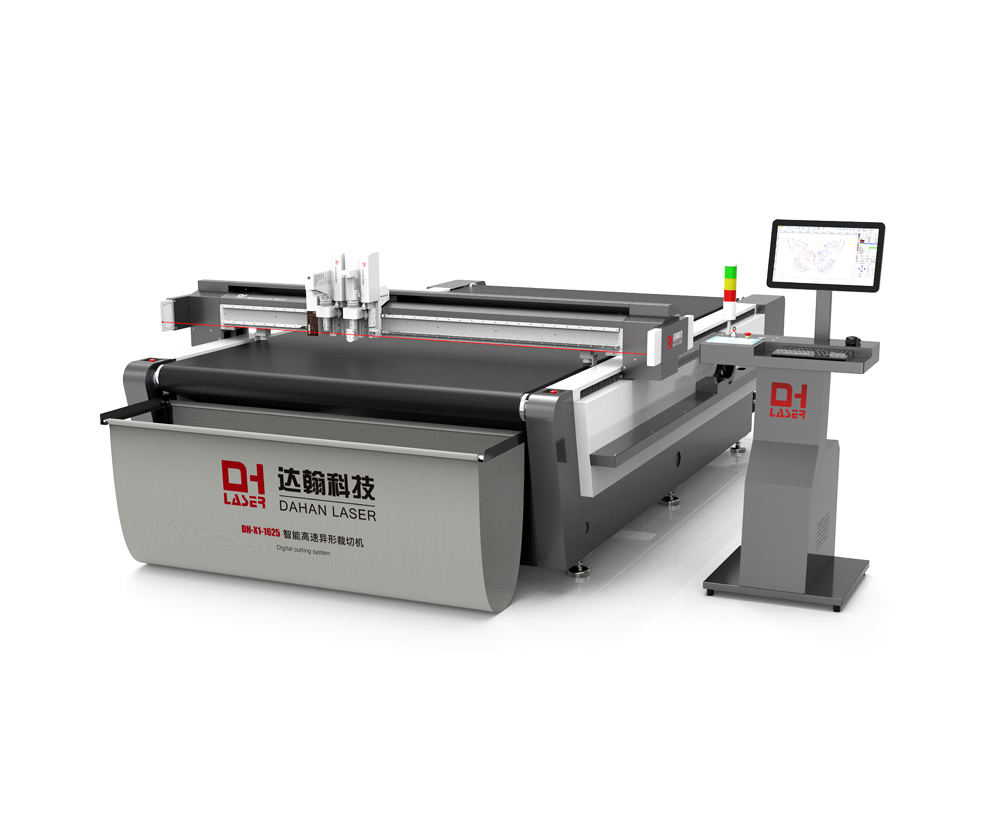

DAHAN intelligent cutting system DH-X1-1625 is mainly designed for sign advertising, printing and packaging industries, etc. It can cut PP paper, PP gum, car stickers, Vinyl, ABS plastic, KT board, etc.


Machine standard equip dual-Z axis with two heads, optional to choose one Z or other heads

The EOT (Electronic oscillating) head, cutting materials by ultra-high speed reciprocating motion driven by motor, especially suitable for medium density material cutting.

Apply to cut advertising KT board, foam board, ABS plastic, corrugated plastic board, cardboard, grey cardboard, silk ring pad, carpet, etc


The UCT (Universal cutting) head, by making the blade quickly moving, realize the material cutting processing, cutting materials at the fastest processing speed. It can cut PP paper, PP gum, reflective materials, car stickers, ABS plastic, thin plastic, blanket, imitation leather, KT board, snow board, cardboard, soft glass and so on.


Features

Ø Replaceable tool mode

Replaceable tool mode, optional choosing appropriate tools can quickly and accurately achieve intelligent cutting of different kinds of materials.

Ø Intelligent safety system

Intelligent anti-collision and infrared blocking device to maximize

the safety of operators.

Ø Intelligent cutting system

Simple and easy to operate, compatible with a

variety of software, convenient and fast.

Ø Intelligent feeding system

To achieve continuous feeding, improve work efficiency, to achieve long span cutting.

Ø Excellent aviation aluminum honeycomb working platform

Aviation aluminum plate combined with high quality 4MM thickness felt

Very flat and stable working table, long-term use without deformation.

Ø 8 areas vacuum working table with high suction force

Ø Visual scanning positioning system

High precision CCD camera, precise positioning of all kinds of materials, perfect alignment, precision cutting. With automatic feeding system, it can realize continuous cutting of ultra-long format materials.

Ø Strong industrial machine boy, support fast speed running without vibration

Ø Machine adopts industrial imported belt transmission

Ø Japan Mitsubishi servo motors and drivers

Ø Machine running speed up to 100 meter/min


Machine parameter


TYPE

DH-X1-2516

Max. working size

2500*1600 mm

Machine dimension

3425*2280*1310 mm

Running speed

100 meter / min

Cutting speed

30 meter/ min

Cutting accuracy

0.1 mm

Max cutting thickness

50mm, customize according to different materials

Data format

DXF, HPGL, PDF

Interface

Ethernet Port

Working table

8 areas vacuum table

Vacuum pump

7.5KW or 9.0KW vacuum pump

Working environment

Temperature 0°C-40°C Humidity 20%-80%RH

Working voltage

380V, 3ph, 50/60Hz.

Rated Power

11KW

Weight

1100 KG

Packing size
